WPC Wood Plastic Embossing Machine

Place of Origin: Jiangsu,China (Mainland)
Use: Others
Plastic Type: Others
Shaft Design: Double
Brand Name: BOYU
Power: 55KW
Capacity: 350-400kg/hr
PVC foam board extrusion line/production line/machine/machinery: Sheet Extrusion Line
Sheet Production Line: PVC Sheet Extrusion Line
Plastic Sheet Production Line: Plastic Sheet Extrusion Line
Plastic Extruder: Plastic Extrusion Line
Extrusion Machine: Extruding Machine
Kitchen Cabinet Board Extrusion Line: WPC Board Extrusion Line
WPC Board Line: PVC Foamed Board Production Line
WPC Board Production Line: PVC Crust Foamed Board Extrusion Line
WPC Extrusion Line: WPC Sheet Extrusion Line
WPC Kitchen Board Extrusion Line: PVC Board Extrusion Line


basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:5000.0~7000.0 USDProduction Capacity:20sets/moth
Trade Term:FOBPacking:film packing
Payment Terms:Paypal, L/C, D/P, D/A, T/T, WU, Money GramDelivery Date:30days
Min. Order:1 Set/Sets
Means of Transport:Ocean

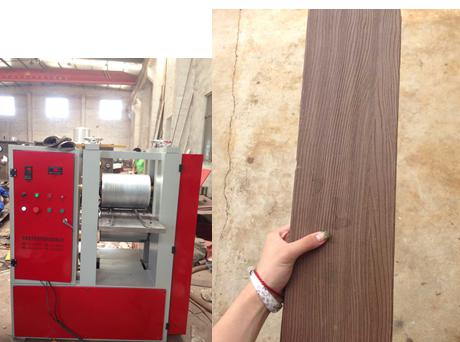

                                      WPC embossing machine WPC embosser

Embossing width360mm
Embossing roller diameter295-320mm according to design
Embossing depth0.4-0.7mm
Embossing speed0.5-12m/min
Material of embossing roller

45#40C2 steel, hard chromium plating on surface

, computer engraved, thickness of roller wall=30mm.

Heating power for roller6kw
Embossing power3kw
Dimension(length*width*height)2*0.8*1.5 meter

The embosser can be used for online embossing during WPC making process. It adopts oil-heating and electrical heating(according to different products), handwheel-clamping, digital temperature control, and frequency speed regulation. It has features of small volume, light weight, time-saving and energy conservation.

Applicationthe  main  product  is  :   plastic-steel  doors  and  windows,   decorate  cover,   decorative  inside  corner  line,   edge  banding,   decoration  strip  , leash(wood  plastic,   clad  plate,   plastic,   sheet  polymer  plates,   fiber  board  )
FeaturesThis  auxiliary  machine  can  be  equipped  on  the  WPC  profile  making  line  to  make  the  profile  with  many  kinds  of  patterns  .
According  to  the  characteristic  of  different  product  adopt  oil  or  electricity  for  roller    heating
With  hand  wheel  pressing  and  temperature  digital  control  ,   free  frequency  speed  control,   small  volume,   light  weight,   power  saving  and  etc.
Technical  dataModel:   MSLMT-400  type
Width  of  embossing: 360mm
Speed  of  embossing:   0-10m/min
Diameter  of  Roll  :   320mm
Working  Pressure:   1-25  Mpa.
Power  of  main  machine:   7.5KW,         voltage: 220V
Heating  power: 1.0kw
Thickness  of  feeding  material: 1mm-65mm
Net  Weight:   150kgs
Overall  Dimension:   800*1200*1300mm
Heating  Way:         Electrical  heating  roll
